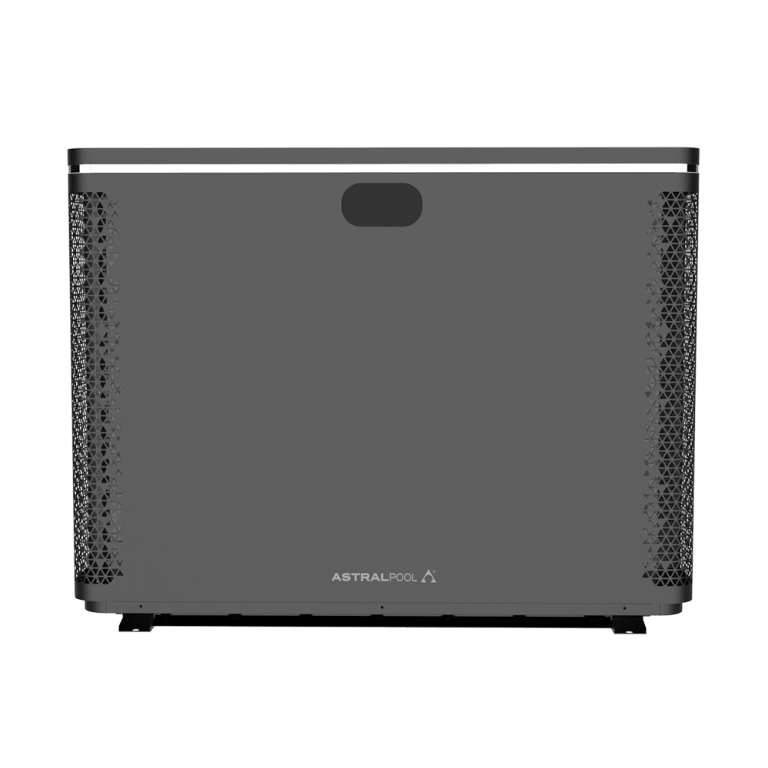

Pinnacle

Name: Pinnacle
SKU: 78581
Price: 5749 NZD
Availability: InStock

SKU 78581

$5,749

The AstralPool Pinnacle Inverter Heat Pump is the ultimate choice for pool owners seeking superior heating performance and energy savings. Designed to operate efficiently in outdoor temperatures as low as -15°C, it ensures year-round comfort without compromise.

- Premium efficiency - Superior energy savings - Whisper quiet operation - Designed for Australian conditions - Plug and play connectivity

Select SKU:

Specifications

Operating Temp Air: from -15 to 43°C
Operating Temp Water (Heating): 15 to 35°C
Operating Temp Water (Cooling): 8 to 35°C
Operating Pressure Refrigerant: 0.05 to 4.2 MPa
Operating Pressure Water: 0 to 0.2 MPa
Power Supply: 220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)
Admissible Variation in Voltage: ±6%
Hydraulic Connections: 2 PVC unions Ø40 NB
Refrigerant Fluid: R32
Protection Rating: IPX4
EN 17645 SCOP: 7.9
Nominal Operating Power A: 5.89
Max Operating Power A: 10.72
Acoustic Power (dB(A)): 61-52
Acoustic Pressure at 10m dB(A): 33-23
Recommended Water Flow m³/h: 4.3
Weight (kg): 82
Dimensions (mm): 1061x787x467

Product information

Brand: astralpool-nz
SKU: 78581

Equipment assistance

Premium Performance. Maximum Efficiency. Whisper Quiet.

Featuring advanced multilayer acoustic insulation around the compressor, the Pinnacle delivers whisper-quiet operation, making it one of the quietest heat pumps available. Its high-efficiency inverter technology achieves a COP of up to 22, reducing energy costs while maintaining optimum water temperature.

Stay connected wherever you are with the included Wi-Fi module, giving you complete remote access to your pool’s temperature settings. Or seamlessly integrate your pool heating with the Halo or Connect 10 automation systems for effortless, plug-and-play control.

As a Fluidra exclusive premium heat pump, the AstralPool Pinnacle represents innovation, energy efficiency, and convenience. This is the perfect solution for a smarter, quieter, and more sustainable pool heating experience.

Product information

High Efficiency with Full Inverter Technology

The Pinnacle heat pump is built around Full Inverter technology, which allows it to dynamically adjust its compressor and fan speeds based on real-time heating demands. This means it doesn’t just switch on and off like traditional systems, it modulates smoothly, maintaining optimal temperature with minimal energy waste. The result is significantly lower electricity bills and a more sustainable heating solution. This efficiency also contributes to a longer lifespan for the unit, as it avoids the wear and tear caused by frequent cycling.

Ultra-Quiet Operation

Noise reduction is a standout feature of the Pinnacle. Thanks to multilayer acoustic insulation surrounding the compressor and advanced fan design, the unit operates at whisper-quiet levels, even during peak performance. This makes it ideal for residential environments, especially in noise-sensitive areas like bedrooms, patios, or poolside installations. The quiet operation enhances user comfort and allows the system to run discreetly in the background without disrupting daily life.

Reliable in Extreme Conditions

Unlike many heat pumps that struggle in cold weather, the Pinnacle is engineered to perform reliably in outdoor temperatures as low as -15°C. This makes it suitable for regions with harsh winters or unpredictable climate shifts. Its robust design and intelligent defrosting capabilities ensure consistent heating even when frost or ice might compromise lesser systems. Whether you're using it for pool heating, domestic hot water, or space heating, the Pinnacle delivers dependable performance year-round.

Seamless Smart Connectivity

Modern convenience is built into the Pinnacle with integrated Wi-Fi and compatibility with AstralPool’s automation platforms. Users can monitor and control the system remotely via smartphone or tablet, adjusting settings, checking performance, and receiving alerts in real time. This smart connectivity not only adds ease of use but also empowers users to optimize energy consumption and troubleshoot issues quickly without needing to be physically present.

Specification	78581	78582	78583	78584	78585	78586
Operating Temp Air	from -15 to 43°C	from -15 to 43°C	from -15 to 43°C	from -15 to 43°C	from -15 to 43°C	from -15 to 43°C
Operating Temp Water (Heating)	15 to 35°C	15 to 35°C	15 to 35°C	15 to 35°C	15 to 35°C	15 to 35°C
Operating Temp Water (Cooling)	8 to 35°C	8 to 35°C	8 to 35°C	8 to 35°C	8 to 35°C	8 to 35°C
Operating Pressure Refrigerant	0.05 to 4.2 MPa	0.05 to 4.2 MPa	0.05 to 4.2 MPa	0.05 to 4.2 MPa	0.05 to 4.2 MPa	0.05 to 4.2 MPa
Operating Pressure Water	0 to 0.2 MPa	0 to 0.2 MPa	0 to 0.2 MPa	0 to 0.2 MPa	0 to 0.2 MPa	0 to 0.2 MPa
Power Supply	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)	220-240 V / 1 phase / 50 Hz (78581-78585); 380-415 V / 3 phase / 50 Hz (78586)
Admissible Variation in Voltage	±6%	±6%	±6%	±6%	±6%	±6%
Hydraulic Connections	2 PVC unions Ø40 NB	2 PVC unions Ø40 NB	2 PVC unions Ø40 NB	2 PVC unions Ø40 NB	2 PVC unions Ø40 NB	2 PVC unions Ø40 NB
Refrigerant Fluid	R32	R32	R32	R32	R32	R32
Protection Rating	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
EN 17645 SCOP	7.9	7.4	7.4	7.3	7.4	7.2
Nominal Operating Power A	5.89	7.92	9.74	15.5	16.15	8.76
Max Operating Power A	10.72	12.8	15	17.1	23.09	10.75
Acoustic Power (dB(A))	61-52	62-53	64-57	65-56	68-61	68-61
Acoustic Pressure at 10m dB(A)	33-23	33-23	34-25	34-24	35-27	35-28
Recommended Water Flow m³/h	4.3	5.3	6.5	9.6	1.03	12.3
Weight (kg)	82	87	105	122	150	155
Dimensions (mm)	1061x787x467	1061x787x467	1161x885x500	1161x885x500	1351x983x530	1351x983x530

Operating Temp Air

78581

from -15 to 43°C

78582

from -15 to 43°C

78583

from -15 to 43°C

78584

from -15 to 43°C

78585

from -15 to 43°C

78586

from -15 to 43°C

Operating Temp Water (Heating)

78581

15 to 35°C

78582

15 to 35°C

78583

15 to 35°C

78584

15 to 35°C

78585

15 to 35°C

78586

15 to 35°C

Operating Temp Water (Cooling)

78581

8 to 35°C

78582

8 to 35°C

78583

8 to 35°C

78584

8 to 35°C

78585

8 to 35°C

78586

8 to 35°C

Operating Pressure Refrigerant

78581

0.05 to 4.2 MPa

78582

0.05 to 4.2 MPa

78583

0.05 to 4.2 MPa

78584

0.05 to 4.2 MPa

78585

0.05 to 4.2 MPa

78586

0.05 to 4.2 MPa

Operating Pressure Water

78581

0 to 0.2 MPa

78582

0 to 0.2 MPa

78583

0 to 0.2 MPa

78584

0 to 0.2 MPa

78585

0 to 0.2 MPa

78586

0 to 0.2 MPa

Power Supply

78581
